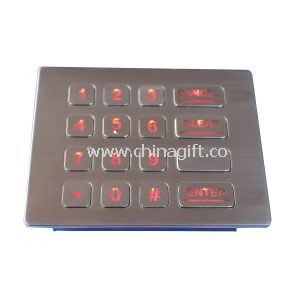

IP65 industrial metal LED backlit keypad

IP65 industrial metal LED backlit keypad

Views:3020

Model No.:CG19393

Price Terms: FOB or EXW

Price: US$ 2~16/Piece | Get Latest Price

Payment Terms:L/C,D/A,D/P,T/T,Western Union,Paypal

Delivery Lead Time: Negotiable

Port: Shenzhen or HK,China

Email us

Product Detailed Description

Special Features:
1. 16 keys IP65 dynamic compact format vandal proof Stainless Steel industrial numeric keypad with industrial PCB
electronics controller shelled & protected by stainless steel housing.
2. Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially
under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
3. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key
covers.
4. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
5. industrial metal domePCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling
for stable and accurate data input
6. top stainless steel plate with sealing gasket for easy & tight sealing and mounting to enclosure or panel
7. threaded bolts under top stainless steel plate for top panel mounting solution.
8. adjustable industrial backlight optional
9. Key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
Applications:
This industrial keypad is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
Specifications:


COMMUNICATION PARAMETER:

Standard USB, PS2

16 actuator

0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter, backup key 3, 4 x 4 scanning code
Any keys can be re-defined per customers’ requirements.

RS232 interface

Communication velocity

9600bps.

Data format

N, 8, 1.

16 actuators:

0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter, backup key 3, 4 x 4 scanning code . Any keys can be re-defined per customers’ requirements.

 MECHANICAL DATA

Actuator/keys

16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.

Switching material

gold-on-Gold key switch technology with metal dome PCB

Actuation Force

2.0N+/-0.1N (pressure point)

Key travel

0.45mm

Lettering

laser engraving, or raised letters

Front plate

 1.5mm thickness super quality brushed stainless steel

Back plate

 1.0mm thickness super quality stainless steel

Actuator/keys materials

stainless steel.

Dimensions

120.0mm x 98.0mm (L x W )

G.W.

0.8KG.

Key top style

Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

Key Size

14.0mm x 14.0mm for normal keys;14.0mm x 28.0mm for function keys

Switch life

more than 5 million of operation
