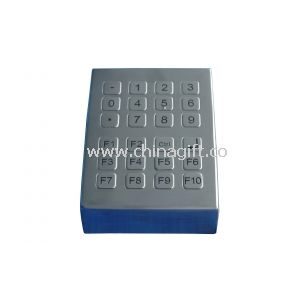

24 keys movable desktop brushed stainless steel keypad

Product Detailed Description

Special Features:

• 24 keys IP65 dynamic compact format vandal proof Stainless Steel industrial numeric desktop keypad
• CE, FCC, RoHS, IP65, ESD certifications
• Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments
• Internet friendly key layout, key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available
• With firm tactile key feel, short travel switches, with unique double over-travel protection
• Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof encapsulation with unique membrane
• Easily mounting into enclosure or panel, and is provided with PS/2, connection output cables that plug directly into the host computer for normal keypad operations
• OS: All windows, Linux, Unix, Mac OSX

This industrial keypad is mainly targeted for use for:

• Unsupervised or semi-supervised positions of varied access applications
• Internet terminals and information kiosks at universities
• Shopping malls, hotels, airports, railway stations and other public areas
• Ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

Specifications:

• COMMUNICATION PARAMETER: Standard USB, PS2, RS232 interface, Communication velocity 9600bps, Data format N, 8, 1
• 24 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,., -, F1, F2, F3, F4, F5, F6,Backspace, Enter, ESC, Del, Pgup, Pgdn, 4 x 6 scanning code. Any keys can be re-defined per customers' requirements
• MECHANICAL DATA: Actuator/keys 24 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key, Switching material gold-on-Gold key switch technology with metal dome PCB, Actuation Force 2.0N+/-0.1N (pressure point), Key travel 0.45mm, Lettering laser engraving, or raised letters, Front plate super quality brushed stainless steel, Actuator/keys materials stainless steel, Dimensions 139.0mm x 98.0mm(LxW), G.W. 1.0 KG, Key top style Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available, Key Size 14.0mm x 14.0mm for normal keys, Switch life more than 5 million of operation
