Product Detailed Description
Quick Details:

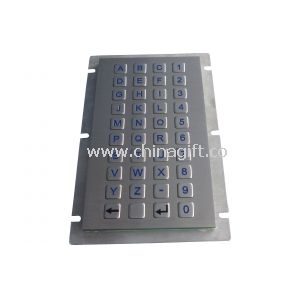

1. 40 Keys Vandal proof IP65 Stainless Steel dot matrix keypad
2. gold-on-gold key switch technology
3. Rear panel mounting
4. With adjustable backlight optional
5. CE, FCC, RoHS, IP65, ESD
Description:
1. 40keys compact format IP65 dynamic water proof and vandal proof Stainless Steel industrial matrix keypad with industrial
metal dome PCB with socket on the back panel for connecting electronics controller,
2. industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling
for stable and accurate data input
3. rear stainless steel plate with mounting holes rear panel mounting solution.
4. Adjustable indsutrial backlight optional
Special Feature
1. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design,
functionality, longevity and high protection level.
2. Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially
under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
3. Waterproof execution according to IP65 protection from top panel
4. An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input, with firm
tactile perception for comfortable operation
5. key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
6. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key
covers.
7. Ease of customizing with multiple languages, to accommodate foreign or custom variants
Applications:
This industrial keypad is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
Specifications:
MECHANICAL DATA
Actuator/keys
40 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.
Switching material
gold-on-Gold key switch technology with metal dome PCB
Actuation Force
2.0N+/-0.1N (pressure point)
Key travel
0.45mm
Lettering
laser engraving, or raised letters
Front pane
1.5mm thickness super quality brushed stainless steel
Actuator/keys materials
stainless steel.
Dimensions
80mm x 140mm(LxW)
G.W.
0.5KG.
Key top style
Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size
10.0mm x 10.0mm for normal keys
Switch life
more than 5 million of operation
Producing IP65 dynamic rated vandal proof Vending Machine Keypad/simple dot matrix keypad with 40-key directly from China can saves money. If you are looking for printing your custom logo design on it as gifts, we are ready to assist you for your audience, your timeframe and your budget.
With 12 years experience in gifts market ,we konw our Clients Are Our Most Valuable Asset.We understand the industry, deadlines and the importance good branding. You can count on us to make sure your order is done right and done in time.
Customer Comments
Question & Answers
IP65 dynamic rated vandal proof Vending Machine Keypad/simple dot matrix keypad with 40-key printing
IMPRINT COLORS
Standard PMS ColorsSET UP CHARGE
$40.00(G) per color, per side. $25.00(G) on re-orders.
Printing Methods
-
Pad Printing
Pad printing is a process that uses a silicone pad to transfer a 2D image from a print plate onto a 3D surface or substrate. The pad, because it is flexible, can wrap itself around the curves of an object so the ink coverage is very good maintaining high quality. Up to four colours can be printed. Ideal for pens, memory sticks, plastic gifts and other smaller corporate gifts -
Screen Printing
Screen printing is the process where an image is exposed onto a mesh screen to make a stencil. A squeegee is used to push the ink through the mesh on the substrate or surface of the product to be printed. Screen printing is used to print large items. Ideal for corporate folders, umbrellas, T-shirts and branded shirt, bags etc. -
Laser Engraving
Laser engraving uses lasers to mark an object. A computer program is used to drive the laser so very precise engravings can be achieved. Laser engraving can be done on metal, wood, glass. Ideal for metal pens, memory sticks, glasses, mugs, flasks, knives etc -
Embroidery
Embroidery is defined as the art of decorating fabric with a needle and thread. Computerised embroidery machines weaves cotton into the material to form the logo. Ideal for clothing, caps, towels & bags. -
Digital Print
Stickers are printed on vinyl in full colour. The stickers can be cut in any shape. -
Dome Stickers
Digitally printed stickers are coated with a liquid polyurethane. The liquid flows to the edge of the badge and then stops. It eventually hardens to create an attractive clear dome.
Our Guarantee
One year Product Guarantee.
Production and shipping
Pre Order Processing: 3 days
Production 20 days (begins after art prep, proof approval)
Shipping by Express 3 to 6 days
by sea 20 to 30 days
