Product Detailed Description
Speecial Features:

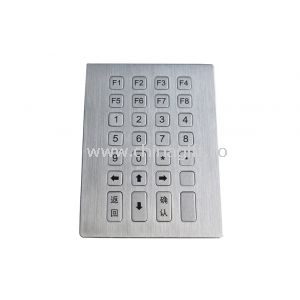

1.28 keys compact format IP65 dynamic vandal proof Stainless Steel industrial numeric keypad
2.short stroke 0.45mm with excellent tactile feeling for stable and accurate data input
3.top stainless steel plate with threaded bolts under top stainless steel plate for top panel mounting solution.
4.Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing,hose-directed water and vandal resistant, operation under hostile environments.
5.Internet friendly key layout, key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available
6.With firm tactile key feel, short travel switches, with unique double over-travel protection.
7.Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof encapsulation with unique membrane.
8.Easily mounting into enclosure or panel, and is provided with PS/2, connection output cables that plug directly into the host computer for normal keypad operations.
9.OS: All windows, Linux, Unix, Mac OSX
Applications:
This industrial keypad is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
Specifications:
COMMUNICATION PARAMETER:
Standard USB, PS2
16 actuator
0, 1, 2, 3, 4, 5, 6, 7, 8, 9, . , -, F1, F2, F3, F4, F5, F6 ,Backspace, Enter, ESC, Del, Pgup, Pgdn, 4 x 7 scanning code. Any keys can be re-defined per customers' requirements.
RS232 interface
Communication velocity
9600bps.
Data format
N, 8, 1.
16 actuators:
0, 1, 2, 3, 4, 5, 6, 7, 8, 9, . , -, F1, F2, F3, F4, F5, F6 ,Backspace, Enter, ESC, Del, Pgup, Pgdn, 4 x 7 scanning code. Any keys can be re-defined per customers' requirements.
MECHANICAL DATA
Actuator/keys
28 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.
Switching material
gold-on-Gold key switch technology with metal dome PCB
Actuation Force
2.0N+/-0.1N (pressure point)
Key travel
0.45mm
Lettering
laser engraving, or raised letters
Front plate
1.5mm thickness super quality brushed stainless steel
Back plate
1.0mm thickness super quality stainless steel
Actuator/keys materials
stainless steel.
Dimensions
179.0mm x 130.0mm (L x W )
G.W.
0.8KG.
Key top style
Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size
14.0mm x 14.0mm for normal keys; 14.0mm x 28.0mm for function keys
Switch life
more than 5 million of operation
Producing 28 keys Plug and play metal numeric keypad with electronic control panel directly from China can saves money. If you are looking for printing your custom logo design on it as gifts, we are ready to assist you for your audience, your timeframe and your budget.
With 12 years experience in gifts market ,we konw our Clients Are Our Most Valuable Asset.We understand the industry, deadlines and the importance good branding. You can count on us to make sure your order is done right and done in time.
Customer Comments
Question & Answers
28 keys Plug and play metal numeric keypad with electronic control panel printing
IMPRINT COLORS
Standard PMS ColorsSET UP CHARGE
$40.00(G) per color, per side. $25.00(G) on re-orders.
Printing Methods
-
Pad Printing
Pad printing is a process that uses a silicone pad to transfer a 2D image from a print plate onto a 3D surface or substrate. The pad, because it is flexible, can wrap itself around the curves of an object so the ink coverage is very good maintaining high quality. Up to four colours can be printed. Ideal for pens, memory sticks, plastic gifts and other smaller corporate gifts -
Screen Printing
Screen printing is the process where an image is exposed onto a mesh screen to make a stencil. A squeegee is used to push the ink through the mesh on the substrate or surface of the product to be printed. Screen printing is used to print large items. Ideal for corporate folders, umbrellas, T-shirts and branded shirt, bags etc. -
Laser Engraving
Laser engraving uses lasers to mark an object. A computer program is used to drive the laser so very precise engravings can be achieved. Laser engraving can be done on metal, wood, glass. Ideal for metal pens, memory sticks, glasses, mugs, flasks, knives etc -
Embroidery
Embroidery is defined as the art of decorating fabric with a needle and thread. Computerised embroidery machines weaves cotton into the material to form the logo. Ideal for clothing, caps, towels & bags. -
Digital Print
Stickers are printed on vinyl in full colour. The stickers can be cut in any shape. -
Dome Stickers
Digitally printed stickers are coated with a liquid polyurethane. The liquid flows to the edge of the badge and then stops. It eventually hardens to create an attractive clear dome.
Our Guarantee
One year Product Guarantee.
Production and shipping
Pre Order Processing: 3 days
Production 20 days (begins after art prep, proof approval)
Shipping by Express 3 to 6 days
by sea 20 to 30 days
Frequently Asked Questions about chinagift.co
Q:When can I get the price of product?We usually quote within 24 hours after we get your enquiry.Q: Can your print our brand logo on 28 keys Plug and play metal numeric keypad with electronic control panel CG19400?
Yes ,we can,and we can make a pre-production sample for your confirmation before mass production.Q:Can you give me a sample pls? how long should it take?
It's our pleasure. But pls understand that some items we will charge a little fee.For existing samples, it takes 1-2 days tos send out. If you want your own designs, it takes 6 to 10 days, subject to your designs whether they need new printing logo, etc. Anyway, we will send it ASAP to your request.Q: Can you do design for me?
We have experienced designers, according to your requirement, we can add your company logo, website, phone number or any of your ideas on the products or on the box... Just tell us your ideas, and let us do it for you.Chinagift.co will make samples for custom designs before massive production for clients approval. If clients are not happy with quality etc or need changes after inspecting the samples, we can re-make again till they are satisfactory, massive production will be finished as per the standards of approved samples.Q: How can you guarantee your goods quality?
All of our goods are 100% inspected before delivery, and spot inspection will be made during production. Third party inspection also is welcomed.Q: Are you accept OEM&ODM?
Sure, ,a professional and experienced R&D will do the best to meet your request.Q: Can I get a refund if goods are bad when arrived us?
Chinagift.co will refund you or make replacement for any questions occurred.Q: Are my products safty during the shipping?
Yes. We will pack the products with a box with many foams and bubble bags in it to make sure the safty.Q:How much does it cost to ship to my country?
The freight will be given by the freight company based on your Gross Weight and CBM, please contact us for details.We can ship By DHL / FedEx / UPS / TNT, or by air,by sea.
