Product Detailed Description

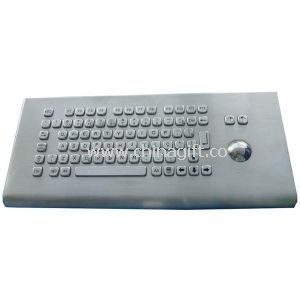

1. IP65 dynamic vandal proof stainless steel industrial kiosk keyboard with trackball
2. CE, FCC, ROHS, IP65, ESD
3. 82 keys compact format IP65 static vandal proof stainless steel industrial keyboard
4. with 38.0mm trackball module,industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm)
5. with extremely good tactile feeling for fast and accurate data input without any noise
6. functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation
7. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, keyboard can be hinged down for wall mounting
8. Mountable DESK TOP VERSION.
9. 2 optional trackball modules:
-----IP65 static mechanical trackball module with 400 DPI
-----IP68 dynamic optical trackball module with 800 DPI
Key 82 keys, super quality SUS304 brushed stainless steel
Key top style Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
14.0mm x 14.0mm for normal keys,
14.0mm x 28.0mm for enter key,
14.0mm x 100mm for space bar.
Key travel 2.0mm
38.1mm (1.5’) diameter,
IP65 static 400DPI mechanical trackball module,
IP68 dynamic washable 800DPI optical trackball module,
Switch life more than 10 million of operations
0.6N +/-0.1N for key 14.0mm x 14.0mm (pressure point)
1.2N +/-0.1N for key 14.0mm x 28.0mm (pressure point)
Stainless Steel Housing 1.20mm thickness super quality brushed stainless steel
Back Plate 3.0mm thickness brushed & oxidized aluminum
Actuator/keys materials stainless steel
Dimensions 403.0mm x 175.0mm x 37.0mm (L x W x H)
Producing Desk Top Waterproof Industrial PC Keyboard With Trackball directly from China can saves money. If you are looking for printing your custom logo design on it as gifts, we are ready to assist you for your audience, your timeframe and your budget.
With 12 years experience in gifts market ,we konw our Clients Are Our Most Valuable Asset.We understand the industry, deadlines and the importance good branding. You can count on us to make sure your order is done right and done in time.
Desk Top Waterproof Industrial PC Keyboard With Trackball printing
Standard PMS Colors
SET UP CHARGE
$40.00(G) per color, per side. $25.00(G) on re-orders.
Pad printing is a process that uses a silicone pad to transfer a 2D image from a print plate onto a 3D surface or substrate. The pad, because it is flexible, can wrap itself around the curves of an object so the ink coverage is very good maintaining high quality. Up to four colours can be printed. Ideal for pens, memory sticks, plastic gifts and other smaller corporate gifts
Screen printing is the process where an image is exposed onto a mesh screen to make a stencil. A squeegee is used to push the ink through the mesh on the substrate or surface of the product to be printed. Screen printing is used to print large items. Ideal for corporate folders, umbrellas, T-shirts and branded shirt, bags etc.
Laser engraving uses lasers to mark an object. A computer program is used to drive the laser so very precise engravings can be achieved. Laser engraving can be done on metal, wood, glass. Ideal for metal pens, memory sticks, glasses, mugs, flasks, knives etc
Embroidery is defined as the art of decorating fabric with a needle and thread. Computerised embroidery machines weaves cotton into the material to form the logo. Ideal for clothing, caps, towels & bags.
Stickers are printed on vinyl in full colour. The stickers can be cut in any shape.
Digitally printed stickers are coated with a liquid polyurethane. The liquid flows to the edge of the badge and then stops. It eventually hardens to create an attractive clear dome.
One year Product Guarantee.
Production and shipping
Pre Order Processing: 3 days
Production 20 days (begins after art prep, proof approval)
Shipping by Express 3 to 6 days
by sea 20 to 30 days
Frequently Asked Questions about chinagift.co
Q:When can I get the price of product?
We usually quote within 24 hours after we get your enquiry.
Q: Can your print our brand logo on Desk Top Waterproof Industrial PC Keyboard With Trackball CG19325?
Yes ,we can,and we can make a pre-production sample for your confirmation before mass production.
Q:Can you give me a sample pls? how long should it take?
It's our pleasure. But pls understand that some items we will charge a little fee.For existing samples, it takes 1-2 days tos send out. If you want your own designs, it takes 6 to 10 days, subject to your designs whether they need new printing logo, etc. Anyway, we will send it ASAP to your request.
Q: Can you do design for me?
We have experienced designers, according to your requirement, we can add your company logo, website, phone number or any of your ideas on the products or on the box... Just tell us your ideas, and let us do it for you.Chinagift.co will make samples for custom designs before massive production for clients approval. If clients are not happy with quality etc or need changes after inspecting the samples, we can re-make again till they are satisfactory, massive production will be finished as per the standards of approved samples.
Q: How can you guarantee your goods quality?
All of our goods are 100% inspected before delivery, and spot inspection will be made during production. Third party inspection also is welcomed.
Q: Are you accept OEM&ODM?
Sure, ,a professional and experienced R&D will do the best to meet your request.
Q: Can I get a refund if goods are bad when arrived us?
Chinagift.co will refund you or make replacement for any questions occurred.
Q: Are my products safty during the shipping?
Yes. We will pack the products with a box with many foams and bubble bags in it to make sure the safty.
Q:How much does it cost to ship to my country?
The freight will be given by the freight company based on your Gross Weight and CBM, please contact us for details.We can ship By DHL / FedEx / UPS / TNT, or by air,by sea.
