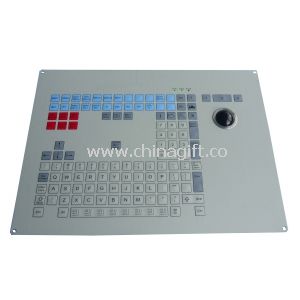

Vandal Proof Industrial Membrane Keyboard With Mechanical Trackball

Vandal Proof Industrial Membrane Keyboard With Mechanical Trackball

Views:1344

Model No.:CG19348

Price Terms: FOB or EXW

Price: US$ 2~14/Piece | Get Latest Price

Payment Terms:L/C,D/A,D/P,T/T,Western Union,Paypal

Delivery Lead Time: Negotiable

Port: Shenzhen or HK,China

Email us

Product Detailed Description

Quick Details:
1. IP65 dynamic scratch proof industrial membrane keyboard with full keyboard functionalities.
2. Clean key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC
3. Durable and anti-microbial keyboard surface
Descriptions:
1. 127 keys IP65 dynamic rated industrial membrane keyboard with full keyboard functionalities with integrated
  numeric keypad
2. 38.0mm mechanical trackball module for fast and accurate cursor position
3. 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology with
  short stroke 0.45mm with extremely tactile feeling for reliable data input
4. With Clean key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC
5. Surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most
  chemicals and liquids under the harshest environments
6. Ruggedized and backed with 3.0mm alumium plate with sand blasting & oxygenation treatment
7. Top panel mounted.
Special Features:
1. Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
2. The foil-covered aluminum front plate is mounted flush for easy cleaning.
3. The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust,
  dirt,grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water,
  disinfectants, environmental contaminants and heavy industrial use.
4. PS/2, USB connection cables that plug directly into computer like keyboard operations.
5. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
6. This stylish, rugged medical keyboard is ideal for any application requiring a rugged enclosure and low profile.
7. Clean key -Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with
minimal downtime
Applications:
This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings.
Its numeric pad allows for easy data entry.
A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
C: MILITARY: Army, Navy, Air force
D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty
  manufacturing environments, warehouses etc
E: OTHER INDUSTRIES
Specifications:

MECHANICAL DATA

Key

127

Key switch Technology

metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys

Actuation Force:

1.0N for key 13.0mm x 13.0mm (press point)

Key travel

0.45mm

Key switch Lifetime

3 mil. operations

Protection Level

IP65, NEMA 4x

Mounting Type

Top panel mounting or Desk Top.

Operating Temperature
