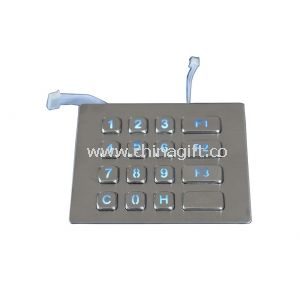

Vending Machine Keypad with long stroke with 16 keys, with backight

Product Detailed Description

Vandal-proof IP65 stainless steel dot matrix keypad with 16 keys and carbon-on-gold key switch technology. Features top panel mounting and adjustable industrial backlight.

• 16 keys IP65 dynamic compact format vandal-proof Stainless Steel industrial numeric keypad with industrial PCB electronics controller shielded and protected by stainless steel housing
• Industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) for fast and accurate data input without any noise
• Top stainless steel plate with sealing gasket for easy and tight sealing and mounting to enclosure or panel
• Threaded bolts under top stainless steel plate for top panel mounting solution
• With adjustable industrial backlight

Imposing stainless steel design meets high protection levels. Stainless steel fascia and key-tops guard against corrosion, weather-proof execution, water proof/dirt proof, operation under hostile environments. Waterproof execution according to IP65 protection from top panel. An excellent tactile feel with full-long travel switches allow users to achieve fast and accurate data input without noise. With firm tactile perception for comfortable operation key-tops are laser-etched in legends and characters for easy readability. Metal keys are protected against twisting and levering which can not be dislodged from front. Ease of customizing with multiple languages. Complete electronic modules including controller in close consultation with customers are available. OS: All windows, Linux, Unix, Mac OSX.

Applications include unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, airports, railway stations, ticket vending machines, gas stations, cash machines (ATMs), Internet public phones.

• COMMUNICATION PARAMETER: Standard USB, PS2, RS232 interface, 9600bps, N, 8, 1
• 16 actuator 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter, backup key 3, 4 x 4 scanning code. Any keys can be re-defined per customers' requirements.
• MECHANICAL DATA: 16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel, carbon-on-Gold key switch technology PCB, 0.6 N+/-0.1N (pressure point), 2.00mm key travel, laser engraving or raised letters, Super quality SUS304 brushed stainless steel front and back plate, stainless steel actuator/keys materials
• Dimensions: 120.0mm x 98.0mm (L x W), G.W. 0.8KG, Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
• Key Size: 14.0mm x 14.0mm for normal keys; 14.0mm x 28.0mm for function keys, Switch life: more than 5 million of operation
