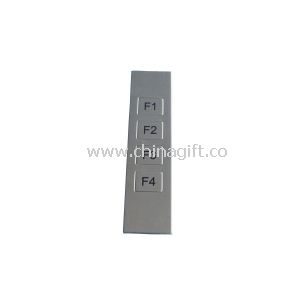

Vending Machine keypad with 4 keys with short stroke/function keypads

Product Detailed Description

Vending Machine keypad with 4 keys with short stroke/function keypads

• 1. 4 keys keys vandal proof IP65 stainless steel function keypad
• 2. top panel mounting.
• 3. CE, FCC, ROHS, IP65, ESD
• 1. 4 Keys IP65 dynamic Vandal proof Stainless Steel industrial matrix function keypad
• 2. with industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input
• 3. without electronics controller
• 4. with top panel mounting.
• 1. Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.
• 2. Key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available
• 3. With firm tactile key feel, short travel gold-on-gold key switches, with unique double over-travel protection.
• 4. Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof encapsulation with unique membrane.
• 5. Easily mounting into enclosure or panel
• This industrial function keypad is mainly targeted for use for:
• A: unsupervised or semi -supervised positions of varied access applications,
• B: internet terminals and information kiosks at universities,
• C: shopping malls, hotels, airports, railway stations and other public areas,
• D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
• Switching material
• gold-on-Gold
• Actuation Force
• 2.0N+/-0.1N
• Key travel
• 0.45mm
• Lettering
• laser engraving, or raised letters
• Front pane
• brushed stainless steel
• Actuator/keys materials
• stainless steel.
• Dimensions
• 116.0mm x 27.0mm
• G.W.
• 0.20KGs
