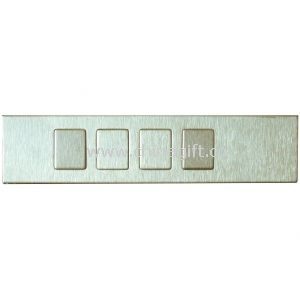

Vending Machine keypad with 4 keys with short stroke/function keypads

Product Detailed Description

Quick Details:

• 1. 4 keys keys vandal proof IP65 stainless steel function keypad
• 2. top panel mounting.
• 3. CE, FCC, RoHS, IP65, ESD
• 1. 4 Keys IP65 dynamic Vandal proof Stainless Steel industrial matrix function keypad
• 2. with industrial metal dome PCB with gold-on-gold key switch technology
• 3. with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input
• 4. without electronics controller
• 5. with top panel mounting.
• 1. Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.
• 2. Key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available
• 3. With firm tactile key feel, short travel gold-on-gold key switches, with unique double over-travel protection.
• 4.Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof encapsulation with unique membrane.
• 5. Easily mounting into enclosure or panel

This industrial funtion keypad is mainly targeted for use for:

• A: unsupervised or semi -supervised positions of varied access applications,
• B: internet terminals and information kiosks at universities,
• C: shopping malls, hotels, airports, railway stations and other public areas,
• D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

Specifications:

• MECHANICAL DATA
• Switching material gold-on-Gold
• Actuation Force 2.0N+/-0.1N
• Key travel 0.45mm
• Lettering laser engraving, or raised letters
• Front pane brushed stainless steel
• Actuator/keys materials stainless steel.
• Dimensions 160.0mm x 40.0mm.
• G.W. 0.40KG.
• ELECTRICAL DATA
• Power supply voltage 5V DC
• Power Consumption Under 150mW for operation, under 50.0mW for non-operation
• Electrical lifetime > 5 years
• EMC EN55022(B)
• Power Consumption Under 150mW for operation, under 50mW for non-operation.
