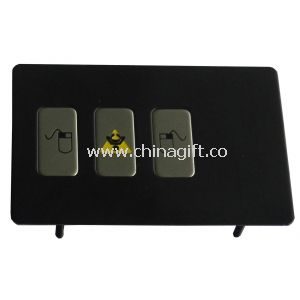

Vending Machine keypad with 3 mouse buttons with short stroke/function keypads

Product Detailed Description

The Vending Machine keypad with 3 mouse buttons with short stroke/function keypads features a 3 keys vandal proof IP65 stainless steel function keypad and a top panel mounting solution. The device meets CE, FCC, ROHS, IP65, and ESD standards. The 3 Keys IP65 dynamic Vandal proof Stainless Steel industrial Mouse Button uses gold-on-gold key switch technology with a short stroke of 0.45mm for stable and accurate data input. The unit includes an electronics controller and a top panel mounting solution.

• Stainless steel fascia and key-tops guard against willful destruction, corrosion, shock, dust, falling raining, splashing, hose-directed water, and vandal resistance for operation under hostile environments.
• Key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability and long life to prevent lettering rub-off, or protrusive engraving is available.
• The unit provides a firm tactile key feel, short travel gold-on-gold key switches, and unique double over-travel protection.
• Waterproof/dirt-proof execution according to degree of protection IP65 uses waterproof and dirt proof encapsulation with a unique membrane.
• The keypad is easily mounting into enclosure or panel.

This industrial function keypad is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals, and information kiosks at universities, shopping malls, hotels, airports, railway stations, and other public areas, ticket vending machines, gas stations, cash machines (ATMs), Internet public phones, etc.

Specifications include a switching material of gold-on-Gold, an actuation force of 2.0 N +/-0.1N (pressure point), a key travel of 0.45mm, lettering of laser engraving or raised letters, a front pane of brushed stainless steel, and actuator/keys materials of stainless steel. Dimensions are 98.0mm x 65.0mm, and G.W. is 0.25KGs.

Electrical data includes a power supply voltage of 5V DC, power consumption of under 150mW for operation and under 50.0mW for non-operation, an electrical lifetime of > 5 years, and EMC Standard compliance with IEC 61000-4-2:2008, IEC 61000-4-3:2006+AI:2007+A2:2010, and IEC 61000-4-4:2004. The OS is All windows, Linux, Unix, Mac OSX, EMI is EN 55022: 2010, and EMS is EN 55024:2010.
