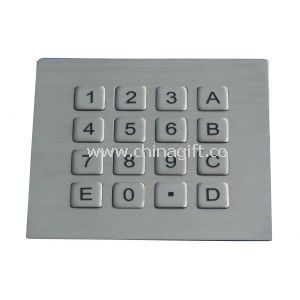

Vending Machine Keypad/simple dot matrix keypad with 16-key

Product Detailed Description

This industrial keypad features a 16-key compact format IP65 dynamic water proof and vandal proof Stainless Steel matrix keypad with metal dome PCB and socket on the back panel for connecting electronics controller.

• Quick Details: 16 Keys Vandal proof IP65 Stainless Steel dot matrix keypad; gold-on-gold key switch technology; Top panel mounting; CE, FCC, RoHS, IP65, ESD
• Key Switch Technology: Industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm for stable and accurate data input
• Special Feature: Stainless steel fascia and key-tops guard against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant operation under hostile environments
• Special Feature: Internet friendly key layout, key-tops are sunk laser-etched in legends and characters for readability and long life to prevent lettering rub-off; Or protrusive engraving available
• Special Feature: With firm tactile key feel, short travel switches, with unique double over-travel protection
• Special Feature: Waterproof/dirt-proof execution according to degree of protection IP65/IP54, waterproof and dirt proof encapsulation with unique membrane
• Special Feature: Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers
• Special Feature: Ease of customizing with multiple languages, to accommodate foreign or custom variants
• Applications: Unsupervised or semi-supervised positions of varied access applications; internet terminals and information kiosks at universities; shopping malls, hotels, airports, railway stations and other public areas; ticket vending machines, gas stations, cash machines (ATMs), Internet public phones
• Specifications: Standard PC/AT keyboard interface; 16 actuator 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, B space, Up, Down, Menu, Cancel, Enter, 4 x 4 scanning code; Any keys can be re-defined per customers' requirements
• Specifications: 16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key; Switching material gold-on-Gold key switch technology with metal dome PCB; Actuation Force 2.0N+/-0.1N (pressure point); Key travel 0.45mm; Lettering laser engraving, or raised letters; Front pane brushed stainless steel; Actuator/keys materials stainless steel; Dimensions 75.0mm x 73.0mm (L x W); G.W. 0.8KG; Key top style Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available; Key Size 10.0mm x 10.0mm for normal keys; Switch life more than 5 million of operation
