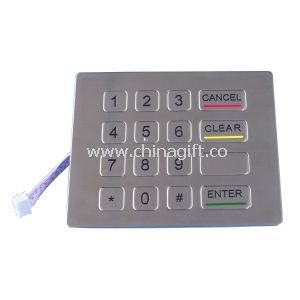

IP65 explosionproof outdoor industrial keypad
| Model No. | CG19396 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 1993 views |
US$ 3~8 /Piece | Get Latest Price
Product Detailed Description
Special Features:
- 16 keys compact format IP65 dynamic water proof and vandal proof Stainless Steel industrial matrix keypad programmable available.
- An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input, with firm tactile perception for comfortable operation.
- Industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input.
- Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
- Key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
- Ease of customizing with multiple languages, to accommodate foreign or custom variants.
- Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
- Less steel plate with welded studs for top panel mounted sealing gasket for easy tightly mounting to enclosure or panel.
Applications:
- This industrial keypad is mainly targeted for use for:
- A: unsupervised or semi-supervised positions of varied access applications.
- B: internet terminals and information kiosks at universities.
- C: shopping malls, hotels, airports, railway stations and other public areas.
- D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
Specifications:
MECHANICAL DATA
Actuator/keys: 16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.
- Switching material: gold-on-Gold key switch technology with metal dome PCB.
- Actuation Force: 2.0N+/-0.1N (pressure point).
- Key travel: 0.45mm.
- Lettering: laser engraving, or raised letters.
- Front pane: 1.5mm thickness super quality brushed stainless steel.
- Actuator/keys materials: stainless steel.
Dimensions: 120.0mm x 98.0mm (L x W).
G.W.: 0.5KG.
Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available.
- Key Size: 14.0mm x 14.0mm for normal keys; 14.0mm x 28.0mm for function keys.
- Switch life: more than 5 million of operation.
