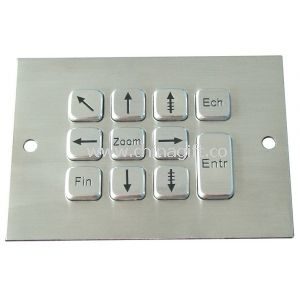

IP65 dynamic rated vandal proof Vending Machine Keypad with long stroke with 11 keys
| Model No. | CG19404 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 3153 views |
US$ 4~23 /Piece | Get Latest Price
Product Detailed Description
This IP65 dynamic rated vandal proof vending machine keypad features an 11-key compact format with carbon-on-gold key switch technology for fast and accurate data input.
- Construction: Stainless steel fascia and key-tops guard against corrosion, shock, dust, falling raining, splashing, hose-directed water, and vandal resistance for operation under hostile environments.
- Key Design: Key-tops are sunk laser-etched in legends and characters using high quality ink for easy readability and long life to prevent lettering rub-off.
- Switching: The unit offers firm tactile key feel with full long carbon-on-gold key switches and unique double over-travel protection.
- Encapsulation: Waterproof/dirt-proof execution according to degree of protection IP65 utilizes a unique membrane for waterproof and dirt proof encapsulation.
- Mounting & Connectivity: The keypad easily mounts into an enclosure or panel and is provided with PS/2, USB, or RS232 connection output cables that plug directly into the host computer.
- Compatibility: Compatible with OS: All windows, Linux, Unix, Mac OSX.
- Applications: This industrial keypad targets unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, airports, railway stations, ticket vending machines, gas stations, cash machines (ATMs), and Internet public phones.
- Communication Parameters: Standard USB, PS2, RS232 interface with communication velocity 9600bps and data format N, 8, 1.
- Actuation: 11 actuator up, down, left, right, home, home, end, insert, PgUp, PgDn, Enter, 4 x 3 scanning code; any keys can be re-defined per customers' requirements.
- 16 Actuators: up, down, left, right, home, home, end, insert, PgUp, PgDn, Enter, 4 x 3 scanning code; any keys can be re-defined per customers' requirements.
- Switching Material: Carbon-on-Gold.
- Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point).
- Key Travel: 2.0mm.
- Lettering: laser engraving, or raised letters.
- Front Pane: brushed stainless steel.
- Actuator/Keys Materials: brushed stainless steel.
- Dimensions: 110.0mm x 80.0mm (top panel).
- G.W.: 0.80KGs.
