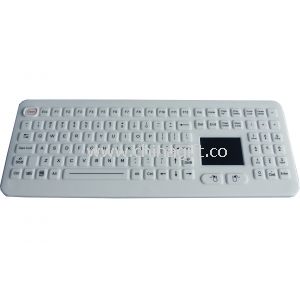

Rugged Touchpad Silicone Industrial Keyboard Desktop For Hygienic

Product Detailed Description

Special Features:

• IP68 dynamic sealed and ruggedized industrial silicone rubber Hygienic keyboard
• Integrated numeric keypad and function keys
• Backlight optional, white and black color are available
• Industrial PCB with carbon-on-gold key switch technology
• With durable coating and antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment
• Clean key for easy cleaning
• Standard alone desk top version with robust polycarbonate case
• Military level optional
• Ease of customizing with multiple languages, to accommodate foreign or custom variants
• PS/2, USB connection cables that plug directly into computer like keyboard operations

Applications:

This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry.

A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc

B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc

C: MILITARY: Army, Navy, Air force

D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses

E: OTHER INDUSTRIES

Specification

• MECHANICAL DATA
• Key
• 108 keys
• Key top style

Protuberant rectangular keys with tactile feeling.

• Touchpad Cover
• Composite
• Key Size

12.0mm X 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key.

• Key travel
• 1.5mm
• Actuation Force

0.8 N+/-0.1N for normal key 12.0mm x 13.0mm(pressure point), 1.6 N+/-0.1N for key 23.4mm x 13.0mm (pressure point)

• X/Y position sensing resolution
• 40 counts/mm
• X/Y position reporting
• Relative
• Switch life
• more than 10 million of operations
• Output(self-detectable depending on cable)
• PS2 or USB
• Tracking speed
• Maximum 1,016 m/sec
• Cable Length
• 2.5m

Dimensions: 399.0mm x 150.0mm x 20.0mm (L x W x H)

G.W. 1.50KGs
