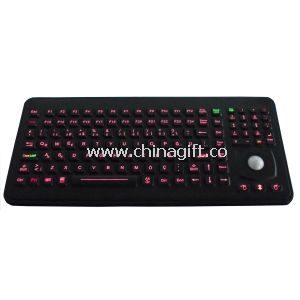

Dynamic Silicone Industrial PC Keyboard With Optical Trackball
| Model No. | CG19368 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 2073 views |
US$ 4~7 /Piece | Get Latest Price
Product Detailed Description
Dynamic silicone industrial PC keyboard with optical trackball.
- IP65 rated ruggedized industrial silicone rubber keyboard with washable optical trackball
- Backlight optional
- Integrated numeric keypad, 24 function keys (F1, F2...F11, F12...F23, F24)
- Sealed & ruggedized IP68 dynamic 25.0mm optical trackball module with 800 DPI resolution for fast and accurate cursor position
- Industrial PCB with carbon-on-gold key switch technology with stroke 1.50mm with tactile feeling for fast and accurate data input without any noise
- Durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment
- Military level optional
- NVIS-compliant red adjustable backlighting for aviation or vehicle applications where night vision goggles are necessary
- Full-size versatility in a rugged, compact design
- Protected against dust, dirt, grease and corrosive liquids to NEMA 4X, withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use
- Clean key prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime, notifies user of 'lock down mode' by brightly lit CLEAN KEY
- Special durable-coating for excellent mechanical and chemical resistance
- Firm tactile key feel, key travel 1.50mm
- Low-profile keys for easy cleaning
- Multiple languages for foreign or custom variants
- PS/2, USB connection cables that plug directly into computer like keyboard operations
- Enclosure: industrial silicone, rugged aluminum plate or stainless steel back plate optional
- Key: 120 keys
- Key top style: Protuberant rectangular keys with tactile feeling
- Key Size: 12.0mm X 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key
- Key travel: 1.5mm
- Actuation Force: 0.8 N+/-0.1N for normal key with 12.0mm x 13.0mm(pressure point), 1.6 N+/-0.1N for key 23.4mm x 13.0mm (pressure point)
- X/Y position sensing resolution: 40 counts/mm
- X/Y position reporting: Relative
- Switch life: more than 10 million of operations
- Output: PS2 or USB
- Tracking speed: Maximum 1,016 m/sec
- Cable Length: 2.5m
- Dimensions: 389.30mm x 179.20mm (L x W)
- G.W.: 1.50KGs
- Applications: Medical (lab, hospital, clinic, dental, carts, diagnostic equipments, operation rooms, dialysis centers), Material Handling (mobile keyboard, data entry, assembly line), Military (Army, Navy, Air force), Industrial (Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses)
