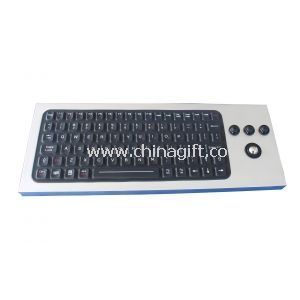

86 Keys Desk Top Silicone Industrial Keyboard With Trackball
| Model No. | CG19361 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 2905 views |
US$ 3~25 /Piece | Get Latest Price
Product Detailed Description
Special Features:
- 1. 86 keys IP68 dynamic sealed & ruggedized industrial silicone rubber industrial keyboard with full keyboard functionalities
- 2. Integrated washable trackball and function keys
- 3. IP68 dynamic rated 16.0mm optical trackball module with 800 DPI resolutions
- 4. Adjustable industrial backlight optional.
- 5. With firm tactile key feel, key travel 1.5mm key travel.
- 6. Military level optional.
- 7. Special durable-coating for excellent mechanical and chemical resistance
- 8. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
- 9. PS/2, USB connection cables that plug directly into computer like keyboard operations.
- 10. Enclosure: industrial silicone, Aluminum back plate
- Applications:
This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry.
- A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
- B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
- C: MILITARY: Army, Navy, Air force
- D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
- E: OTHER INDUSTRIES
- Specification:
- MECHANICAL DATA
- Key
- 86keys
- Key top style
Protuberant rectangular keys with tactile feeling.
- Key Size
- 12.0mm X 13.0mm for normal keys,
- 23.4mm x 13.0mm for enter key
68.0mm x 13.0mm for space bar key.
- Key travel
- 1.5mm
- Actuation Force
0.8 N+/-0.1N for normal key with 12.0mm x 13.0mm(pressure point), 1.6 N+/-0.1N for key 23.4mm x 13.0mm (pressure point)
- X/Y position sensing resolution
- 40 counts/mm
- X/Y position reporting
- Relative
- Switch life
- more than 10 million of operations
- Output(self-detectable depending on cable)
- PS2 or USB
- Tracking speed
- Maximum 1,016 m/sec
- Cable Length
- 2.5m
G.W.
- 2.0KGs
- Dimensions:
- 368.0mm x 142.90mm x 31.0mm (L x W x H)
