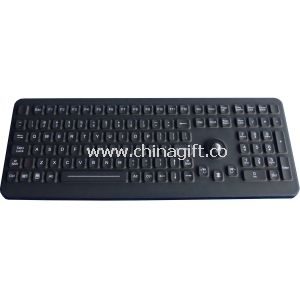

12 Function Keys Silicone Industrial Keyboard With Washable Trackball

Product Detailed Description

Special Features:

1. IP68 dynamic rated 16.0mm optical trackball module

• 2. With 800 DPI resolutions for fast and accurate cursor position with extremely smooth operation
• 3. Integrated washable trackball and function keys
• 4. Backlight optional
• 5. CE, FCC, RoHS, IP68, ESD

• 6. Clean key--Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime
• 7. Special durable-coating for excellent mechanical and chemical resistance
• 8. PS/2, USB connection cables that plug directly into computer like keyboard operations.

Applications:

This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry.
A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
C: MILITARY: Army, Navy, Air force
D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
E: OTHER INDUSTRIES

Specification

• MECHANICAL DATA
• Key
• 106keys
• Key top style

Protuberant rectangular keys with tactile feeling.

Key Size

12.0mm X 13.0mm for normal keys,
23.4mm x 13.0mm for enter key
68.0mm x 13.0mm for space bar key.

• Key travel
• 1.5mm
• Actuation Force

• 0.8 N+/-0.1N forkey with 12.0mm x 13.0mm(pressure point),
• 1.6 N+/-0.1N for key 23.4mm x 13.0mm (pressure point)

• X/Y position sensing resolution
• 40 counts/mm
• X/Y position reporting
• Relative
• Switch life
• more than 10 million of operations
• Output(self-detectable depending on cable)
• PS2 or USB
• Tracking speed
• Maximum 1,016 m/sec
• Cable Length
• 2.5m

G.W.

• 1.50KGs
• Dimensions:
• 396.0mm x 150.0mm x 23.0mm (L x W x H)
