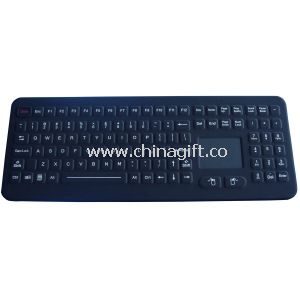

108keys Backlight Silicone Industrial Keyboard With Numeric Keypads
| Model No. | CG19360 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 3209 views |
US$ 4~17 /Piece | Get Latest Price
Product Detailed Description
108keys Backlight Silicone Industrial Keyboard With Numeric Keypads
- IP65 rated ruggedized industrial silicone rubber keyboard with sealed touchpad.
- Integrated numeric keypad and function keys
- Adjustable industrial backlight optional.
- Industrial PCB with carbon-on-gold key switch technology with stroke 1.50mm with tactile feeling for fast and accurate data input without any noise.
- Top panel mounted solutions with ruggedized robust polycarbonate frame with mounting studs
- Ease of customizing with multiple languages, to accommodate foreign or custom variants.
- PS/2, USB connection cables that plug directly into computer like keyboard operations.
- Enclosure: industrial silicone, stainless steel plate optional.
- With durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment,
- Clean key for easy cleaning.
Applications:
This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry. A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc; B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc C: MILITARY: Army, Navy, Air force D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses E: OTHER INDUSTRIES
Specification
- MECHANICAL DATA Key 108 keys Key top style Protuberant rectangular keys with tactile feeling. Key Size 12.0mm X 13.0mm for normal keys, 23.4mm x 13.0mm for enter key 68.0mm x 13.0mm for space bar key. Key travel 1.5mm Actuation Force 0.8 N+/-0.1N for normal key with 12.0mm x 13.0mm(pressure point), 1.6 N+/-0.1N for key 23.4mm x 13.0mm (pressure point) X/Y position sensing resolution 40 counts/mm X/Y position reporting Relative Switch life more than 10 million of operations Output(self-detectable depending on cable) PS2 or USB Tracking speed Maximum 1,016 m/sec Cable Length 2.5m G.W. 1.50KGs Dimensions: 396.0mm x 250.0mm (L x W)
