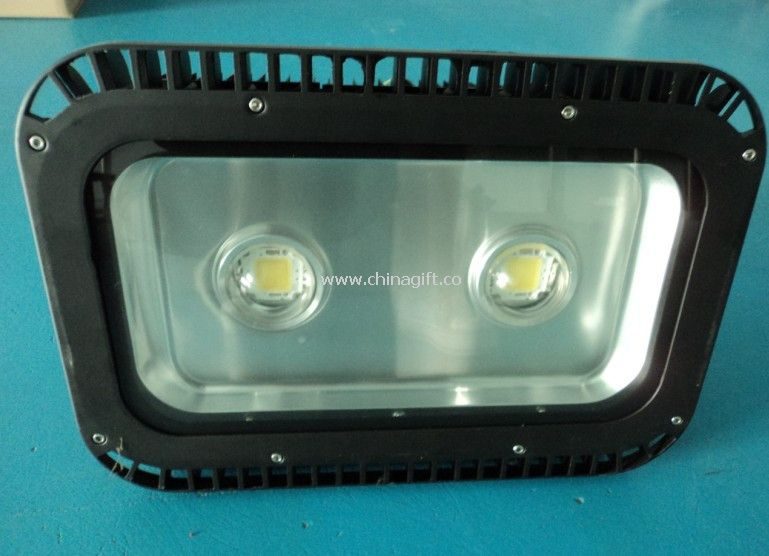

Plaza lights
| Model No. | CG17468 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 2890 views |
US$ 3~22 /Piece | Get Latest Price
Product Detailed Description
Plaza lights are LED fixtures built for outdoor and plaza illumination. Each unit carries two LED chips from Formosa Epitaxy in a matte housing. The input voltage range is AC 180~265V at a frequency range of 50HZ/60HZ, and the output voltage is DC 24V. The power factor is 0.92 and the power efficiency is 0.85. LED luminous efficiency is 90-100Lm/W, and the LED initial flux is WW:2944Lm, PW:4069Lm, and CW:2986Lm. Color temperature spans WW:2700K-3900K, PW:3900K-6000K, and CW:6000K-7000K. The color rendering index is WW:Ra>68 and PW & CW:Ra>75. Operating temperature is -30℃~80℃, the IP grade is IP65, and the life-span is 50000H.
- LED Quantity: 2PC
- LED Chip: Formosa Epitaxy
- LED Housing: Matte Housing
- Input Voltage: AC 180~265V
- Frequency Range: 50HZ/60HZ
- Output Voltage: DC 24V
- Power Factor: 0.92
- Power Efficiency: 0.85
- LED Luminous Efficiency: 90-100Lm/W
- LED Initial Flux: WW:2944Lm; PW:4069Lm; CW:2986Lm
- Color Temperature: WW:2700K-3900K; PW:3900K-6000K; CW:6000K-7000K
- Color Rendering Index: WW:Ra>68; PW & CW:Ra>75
- Operating Temperature: -30℃~80℃
- IP Grade: IP65
- Life-Span: 50000H
- NG: 0.95KG
- Inner Box Size: 18.5*12*6.5cm
- Packing Box Size: 63*39*14.5cm
- Quantity/Container: 20": 13,464pcs; 40": 26,928pcs
