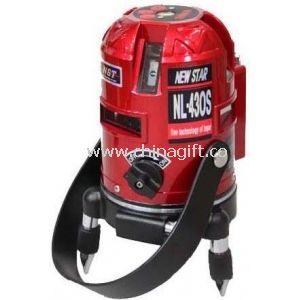

Laser Level instrument

Product Detailed Description

This laser level instrument projects an irradiating laser comprising four vertical lines, two horizontal lines, and one down point. It relies on visible diode light sources. The wave length is 635nm or 650nm for the down point. Output power is less than 1mW. The power supply is DC6V from four AA size Alkaline Batteries, and working and charging can happen at one time with a transformer. The working range reaches up to 10m or up to 40m with a detector, achieving 40m indoor by laser modulation receiver. The revolve around degree is 360°, and the fine adjustment range is also 360°.

• Light sources: Visible diode
• Wave length: 635nm, 650nm (Down point)
• Output power: <1mW
• Power supply: DC6V (4 x AA size Alkaline Batteries); working and charging at one time with transformer
• Working range: up to 10m or up to 40m (with detector); achieving 40m indoor by laser modulation receiver
• Self-leveling range: ±4.5°
• Incline alarm range: ±4.5°
• Self-leveling time: <25s; fine adjust <5s can get levelling
• Revolve around degree: 360°
• Fine adjustment range: 360°
• Vertical accuracy: ±1mm/10m
• Horizontal accuracy: ±1mm/10m
• Cross accuracy: 0.01°
• Self-levelling method: Electronic automatic level
• Continuous operating time: ≥5hours; all lasers are inlight
• Out-of-level warning: Laser lines-flickering
• Operating temp: 10 - 40
• Dimensions: Φ103x143mm
• Weight: 1.3kg
• Accessories included: Carrying case / Enhancement glasses
