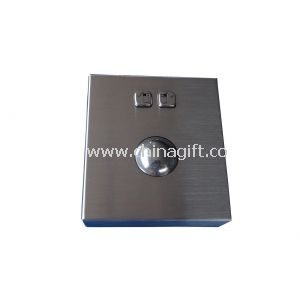

Stand alone Industrial Trackball with Stainless steel materails

Product Detailed Description

Special Features:

1. Desktop Version.

• 2. 38.00mm trackball,2.00mm long stroke travel.
• 3. USB,PS2 are available.
• 4. CE, FCC, RoHS, IP65,IP68, ESD
• 5. Suit for dirt and water protection in harsh environments.
• 6. Retaining one-pixel positioning accuracy when the ball is moved slowly.
• 7. All Metal Mechanicals provide for rugged, smooth, long lasting operation.
• 8. Trackball module protected and shielded by stainless steel housing
• 9. Stainless steel top plate with threaded bolts for top panel mounting solution.
• Applications:

• This trackball is mainly targeted for use for:
• A: unsupervised or semi -supervised positions of varied access applications,
• B: internet terminals and information kiosks at universities,
• C: shopping malls, hotels, airports, railway stations and other public areas,
• D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

Specifications:

• Mechanical
• Key
• 2 keys, quality brushed stainless steel
• Key top style
• Protuberant Rectangular Keys,
• Front Plate
• Quality brushed stainless steel
• Key Travel
• 2.0mm
• Ball diameter
• 38.1mm/1.50" (19mm, 25mm, 36mm 40mm also available)
• Key switch lifespan
• more than 10 Mio actuations
• Track ball lifespan
• > 10 Mio revolutions
• Back Metal Cover
• Rear side integrated electronics protected by a metal cover
• Actuation Force
• 1.0N to 3.0N
• Mounting Rack
• Aluminum alloy
• Dimension

38mm track ball, 107.0mm x 120.0mm x 32.0mm (L x W x H)
