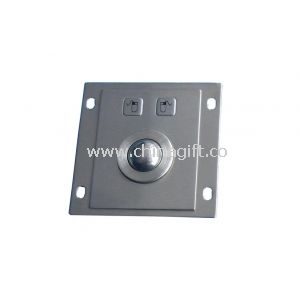

Rear Panel Rugged Industrial Trackball with Mini Size
| Model No. | CG19381 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 2362 views |
US$ 5~14 /Piece | Get Latest Price
Product Detailed Description
Rear Panel Rugged Industrial Trackball with Mini Size
- 1. Mini Trackball with front plate (LxW): 65.0 x 80.0mm
- 2. Washable 25.0mm trackball, 0.45mm Short stroke.
- 3. IP68 dynamic trackball module
- 4. Rear panel mounting solution.
- 5. IP65 dynamic Vandal proof Stainless Steel industrial Trackball
- 6. fast and accurate cursor position with extremely smooth operation without any noise
- 7. Trackball module shielded and protected by stainless steel housing,
- 8. rear stainless steel plate with mounting holes for rear panel mounted.
- 9. 2 optional trackball modules, pls.see below table.
Applications:
- This trackball is mainly targeted for use for:
- A: unsupervised or semi -supervised positions of varied access applications,
- B: internet terminals and information kiosks at universities,
- C: shopping malls, hotels, airports, railway stations and other public areas,
- D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
SPECIFICATION
- Mechanical
- Key
- 2 keys, quality brushed stainless steel
- Key top style
- Non-protuberant rectangular Keys,
- Front Plate
- Quality brushed stainless steel
- Key Travel
- 0.45mm
- Ball diameter
- 25.4mm/1.0' (19mm, 25mm, 36mm 40mm, 50mm also available)
- Key switch lifespan
- more than 5 Mio actuations
- Track ball lifespan
- > 10 Mio revolutions
- Back Metal Cover
- Rear side integrated electronics protected by a metal cover
- Actuation Force
- 1.0N to 3.0N
- Mounting Rack
- Stainless steel
- Dimension
- Dimensions with 25mm track ball,
- Front plate (LxW): 65.0 x 80.0mm,
- Overall (LxW x H): 90.0 x 90.0 x 29.5mm
