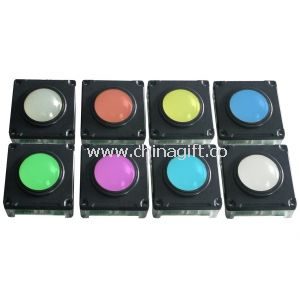

Mechanical Kiosk Trackball With Touch Backlight , Keyboard Trackball

Product Detailed Description

• 1. IP65 static 38mm trackball module with 400DPI resolution.
• 2. Stainless steel ball and harden ball are available
• 3. CE, FCC, RoHS, IP65, ESD
• Descriptions:

IP65 static rated 38mm stainless steel mechanical trackball MODULE with 400 DPI resolutions for fast and accurate cursor position, harden-resin ball is also available for option.

Special Features:

A, cheaper.

B, IP65 static, which means the the best usage of CTB is for indoor and cleaner conditions, and can not be washable.

C, 400 DPI resolution.

D, The ball backlight will be on when the ball is moving, and the backlight will be off after several seconds when the ball is still.

E, The ball backlight is with 7 colors are available with adjusting the switch on trackball module

F, Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.

G, Available 50.0mm, 38.0mm, 25.0mm, 16.0mm and 16mm diameter stainless steel or hard phenolic resin ball for smooth, durable operation and precise cursor positioning.

• Applications:
• This industrial trackball module is mainly targeted for use for:
• A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
• B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
• C: MILITARY: Army, Navy, Air force
• D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
• E: OTHER INDUSTRIES

Mechanical Data

• Ball diameter
• 38mm/1.50' (16mm, 25mm, 50mm also available)
• Track ball lifespan
• > 10 Mio revolutions
• Actuation Force
• 1.0N to 3.0N
• Dimension
• 38.1 mm diameter for ball, 60.0mm x 60.0mm (front panel)
