IP65 Dynamic Industrial Trackball Vandal Proof With Washable Trackball
| Model No. | CG19390 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 2677 views |
US$ 3~8 /Piece | Get Latest Price
Product Detailed Description

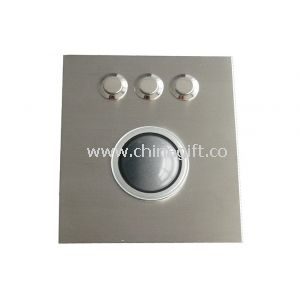

IP65 Dynamic Industrial Trackball Vandal Proof With Washable Trackball
- Quick Details
- 1. IP65 dynamic vandal proof stainless steel industrial optical trackball
- 2. 38.0mm optical trackball
- 3. IP68 dynamic optical trackball module with 800 DPI
- 4. Top panel mounting solution
- Descriptions
- 1. IP65 dynamic rated vandal proof stainless steel optical trackball
- 2. IP68 dynamic rated washable 38.0mm hardened resin optical trackball module with +800 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise
- 3. Three IP65 dynamic sealed and ruggedized stainless mouse buttons above trackball designed for right & left clicking and scrolling up and down with ball rolling
- 4. Top metal ring can be movable for easy cleaning from top panel
- 5. Stainless steel top plate with threaded bolts for top panel mounting solution
- MAIN FEATURE
- 1. IP68 dynamic waterproof (from the top)
- 2. Solid State Optical Navigation Technology
- 3. Removable Ball Versions
- 4. Maintenance free with no moving parts
- 5. Intrinsically and ESD safe operation
- 6. Quadrature, PS/2 and USB outputs
- 7. Anti-vandal options
- 8. Output cables and switch input cables (option)
- 9. Decontamination Friendly
- Applications
- This trackball is mainly targeted for use for:
- A: unsupervised or semi-supervised positions of varied access applications
- B: internet terminals and information kiosks at universities
- C: shopping malls, hotels, airports, railway stations and other public areas
- D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
- Specifications
- Mechanical Key: 3 keys, sealed stainless steel buttons
- Key top style: sealed round stainless steel buttons with tactile feeling
- Front Plate: Quality brushed SUS304 stainless steel
- Key Travel: 0.45mm
- Ball: Epoxy Resin with special surface treatment, 38mm/1.50'
- Key switch lifespan: more than 5 Mio actuations
- Track ball lifespan: > 5 Mio revolutions
- Back Metal Cover: Rear side integrated electronics protected by a metal cover
- Tracking Force: 20 grams Nominal Continuous Friction / Scraper Ring
- Dimension: Dimensions with 38mm track ball, Front plate (LxW): 107.0mm x 120.0mm
