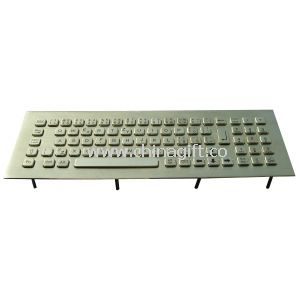

Waterproof keyboard with encryption PINPAD for ATM

Product Detailed Description

IP65 dynamic vandal proof stainless steel industrial kiosk keyboard with trackball and encryption PINPAD supporting DES/TDES. The device meets CE, RoHS, FCC, IP65, and ESD standards.

• 79 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard
• Industrial PCB with carbon-on-gold key switch technology and long stroke (2.0mm) for fast and accurate data input without any noise
• Integrated encryption PINPAD supporting DES/TDES
• Stainless steel top plate with threaded bolts for top panel mounting solution
• Imposing stainless steel design meets high demands regarding design, functionality, longevity, and protection level
• Stainless steel fascia and key-tops guard against willful destruction, corrosion, weather-proof conditions, water, and dirt
• Waterproof execution according to degree of protection IP65 seals the panel against ingress of liquid and dirt
• Excellent tactile feel with full-long travel switches and firm tactile perception for comfortable operation
• Internet friendly key layout with laser-etched legends and characters for easy readability
• Keys protected against twisting and levering cannot be dislodged from front or defaced removing key covers
• Customizing with multiple languages accommodates foreign or custom variants
• Mounts easily into enclosure or panel with PS/2, USB connection output cables plugging directly into the host computer
• Integrated EPP encryption module with RS232 interface for bank kiosks, CDM/ATM

Applications include unsupervised or semi-supervised positions for varied bank access applications, Bank kiosks, ATM, CDMs.

Specifications:

Standard RS232 serial interface. Communication velocity: 19200, 9600, 4800, 2400, 1200bps. Data format: N, 8, 1. 15 actuators: 0-9, correct, enter, cancel, backup key 2 defined for ABC. Data encryption and decryption (DES/TDES), MAC Algorithm. Encryption rate < 1 second.

Mechanical Data:

• Key: 79 keys, super quality SUS304 brushed stainless steel
• Key top style: Protuberant rectangular keys with laser engraved and etched legends and raised braille
• Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100mm for space bar
• Key travel: 2.0mm
• Switch life: more than 10 million of operations
• Actuation Force: 0.6N +/-0.1N for key 14.0mm x 14.0mm, 1.2N +/-0.1N for key 14.0mm x 28.0mm
• Actuator/keys materials: stainless steel
• Lettering: Sunk laser legends & characters in high quality ink
• G.W.: 1.60KGs
• Dimensions: 340.0mm x 125.0mm (front panel), 320.0mm x 105.0mm (back panel)
