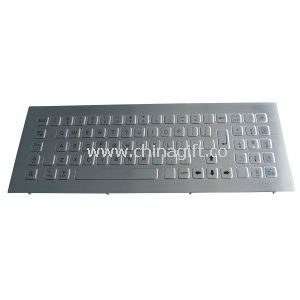

Stainless Steel Panel Mount Industrial PC Keyboard with numeric keypad

Product Detailed Description

Special Features:

• 79 keys IP65 dynamic vandal proof stainless steel industrial kiosk keyboard
• With integrated numeric keypad
• CE,RoHS, FCC,IP65,ESD
• industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input
• stainless steel top plate with threaded bolts for top panel mounting solution
• Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
• USB or PS2 interface are available

Applications:

• This Keyboard is mainly targeted for use for:
• A: unsupervised or semi -supervised positions of varied access applications,
• B: internet terminals and information kiosks at universities,
• C: shopping malls, hotels, airports, railway stations and other public areas,
• D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

Specifications:

• MECHANICAL DATA
• Key
• 79 keys, super quality SUS304 brushed stainless steel
• Key top style

Non-Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available

Key Size

14.0mm x 14.0mm for normal keys,
14.0mm x 28.0mm for enter key,
14.0mm x 100mm for space bar.

• Key travel
• 0.45mm
• Switch life
• more than 5 million of operations
• Actuation Force

• 2.0 N +/-0.1N for key 14.0mm x 14.0mm (pressure point)
• 4.0 N +/-0.1N for key 14.0mm x 28.0mm (pressure point)

• Front Plate
• 1.5mm thickness super quality brushed stainless steel
• Back Plate
• 3.0mm thickness brushed & oxidized aluminum

G.W.

• 1.40KGs
• Dimensions
• 340.0mm x 125.0mm (front panel), 320.0mm x 105.0mm (back panel)
