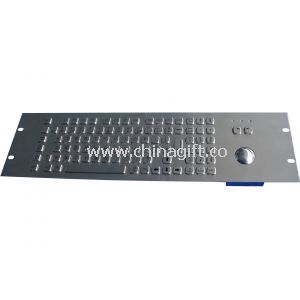

Panel Mount Industrial PC Keyboard

Product Detailed Description

IP65 dynamic vandal-proof stainless steel industrial kiosk keyboard with trackball

• 38.0mm trackball, 3 kinds trackball module optional
• CE, FCC, ROHS, IP65, ESD

1.97 Keys Compact Format IP65 dynamic Vandal Proof 19U Stainless Steel industrial Keyboard with full keyboard functionalities. Features 38.0mm stainless steel trackball module, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) for fast and accurate data input without any noise. Numeric keypad (optional PINPAD with Encryption Electronics Controller supporting DES/TDES). Function keys F1, F2..F10, F11, F12 are on the top panel for easy operation, top stainless steel plate with mounting holes on both ends for fixing keyboards.

3 optional trackball modules: IP65 static mechanical trackball module with 400 DPI, IP68 dynamic optical trackball module with 800 DPI, IP68 dynamic laser trackball module with 1200 DPI. Imposing stainless steel design meets demands with regard to design, functionality, longevity and high protection level. Stainless steel fascia and key-tops guard against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments. Waterproof execution according to IP65 protection from top panel, top stainless steel plate with threaded bolts for tightly mounting to enclosure or panel.

Excellent tactile feel with full-long travel switches allow users to achieve fast and accurate data input without any noise. Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers. Ease of customizing with multiple languages, to accommodate foreign or custom variants. Complete electronic modules including controller in close consultation with customers are available. PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver. The numeric keypad between keyboard and trackball is available with encryption module supporting DES/TDES for bank usage of CDM/ATM.

Applications: unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, airports, railway stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs), Internet public phones.

Specifications:

• Key: 97 keys, super quality SUS304 brushed stainless steel
• Key top style: Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
• Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100mm for space bar
• Key travel: 2.0mm
• Tracker ball: 38.1mm (1.5') diameter, IP65 static 400DPI mechanical trackball module, IP68 dynamic washable 800DPI optical trackball module, IP68 dynamic 1200DPI laser trackball module are all available
• Switch life: more than 10 million of operations
• Actuation Force: 0.6N +/-0.1N for key 14.0mm x 14.0mm (pressure point), 1.2N +/-0.1N for key 14.0mm x 28.0mm (pressure point)
• Front Plate: 1.5mm thickness super quality brushed stainless steel
• Back Plate: 3.0mm thickness brushed & oxidized aluminum
• Actuator/keys materials: stainless steel
• G.W.: 2.50KGs
• Dimensions: 482.6mm x 133.3mm (top panel)
