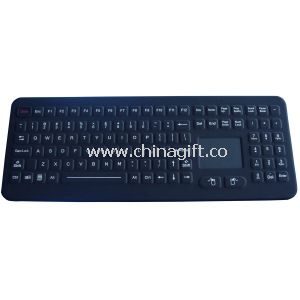

Industrial PC Keyboard
| Model No. | CG19347 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 373 views |
US$ 5~8 /Piece | Get Latest Price
Product Detailed Description
IP65 rated ruggedized industrial silicone rubber keyboard with sealed touchpad. The unit integrates a numeric keypad and function keys. Backlighting is adjustable. Carbon-on-gold key switch technology provides a 1.50mm stroke for tactile input without noise. The durable coating withstands chemicals and liquids in harsh environments. The low-profile design allows for easy cleaning. The enclosure features a polycarbonate frame with mounting studs.
- IP65 rating with sealed touchpad
- 108 keys with numeric keypad and function keys
- Carbon-on-gold key switch technology, 1.50mm stroke
- Durable coating resists chemicals and liquids
- Low-profile keys for easy cleaning
- Polycarbonate frame with mounting studs
- Adjustable backlight optional
- Military level optional
- Stainless steel plate optional
NVIS-compliant red adjustable backlighting suits aviation or vehicle applications. The design lacks crevices, protecting against dust, dirt, grease, and corrosive liquids to NEMA 4X. The Clean Key prevents data transmission during wiping, notifying the user of 'lock down mode' via a lit indicator. The keyboard supports multiple languages and connects via PS/2 or USB cables.
- NVIS-compliant red adjustable backlighting
- Crevice-free design for NEMA 4X protection
- Clean Key prevents data transmission during wiping
- Supports multiple languages
- PS/2 or USB connection cables
Applications include medical settings, material handling, military, and industrial automation. The keyboard is suitable for manufacturing, pharmaceutical, oil and gas, and food and beverage environments.
- Medical: lab, hospital, clinic, dental, carts, diagnostic equipment, operation rooms, dialysis centers
- Material Handling: mobile keyboard, data entry, assembly line
- Military: Army, Navy, Air Force
- Industrial: automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
Key top style features protuberant rectangular keys. Key Size is 12.0mm X 13.0mm for normal keys, 23.4mm x 13.0mm for enter key[Page], and 68.0mm x 13.0mm for space bar key. Actuation Force is 0.8 N+/-0.1N for normal keys with 12.0mm x 13.0mm pressure point, and 1.6 N+/-0.1N for key 23.4mm x 13.0mm pressure point. X/Y position sensing resolution is 40 counts/mm. Switch life exceeds 10 million operations. Tracking speed is a maximum of 1,016 m/sec. Cable Length is 2.5m. Dimensions are 396.0mm x 250.0mm (L x W). G.W. is 1.50KGs.
