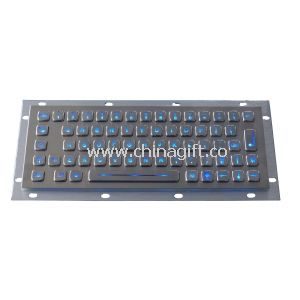

Illuminated patent industrial pc keyboard 64keys

Product Detailed Description

The Illuminated patent industrial pc keyboard 64keys features an IP65 dynamic vandal proof stainless steel industrial kiosk keyboard. An industrial metal PCB with carbon-on-gold key switch technology is included. The device meets CE, RoHS, FCC, IP65, and ESD standards. A rear aluminum plate with mounting holes allows for easily and tightly mounting to enclosure or panel. The keyboard includes a long stroke of 2.0mm with extremely good tactile feeling. An adjustable industrial backlight is included in Red or Blue color options. The PS/2, USB connection plug and play with PC via PC existing OS driver requires no separate driver installation. The unit is water proof and dirt proof for operation under hostile environments.

• This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications.
• It is suitable for internet terminals and information kiosks at universities.
• It fits shopping malls, hotels, airports, railway stations and other public areas.
• It is used for ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

Specifications:

MECHANICAL DATA

Actuator/keys

64 keys, 2.0mm thickness super quality SUS304 brushed stainless steel bulge keys.

Key top style

protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

Key Size

14.0mm x 14.0mm for normal keys, 14.0mmx28.0mm for Enter Key, 14.0mm x 100.0mm for space bar.

• Key travel: 2.0mm
• Switch life: more than 10 million of operations
• Actuation Force: 0.6 0N+/-0.1N for key 14.0mm x 14.0mm (pressure point)
• Actuation Force: 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
• Mounting Rack: Aluminum alloy
• Front Plate: 1.5mm thickness super quality brushed stainless steel
• Back Plate: 3.0mm thickness brushed & oxidized aluminum
• G.W.: 1.20KGs
• Dimensions: 272.0mm x 105.0mm (front panel), 296.0mm x 129.0mm (back panel)
