Illuminated mechanical switch keyboard / Dust proof keyboard

Product Detailed Description

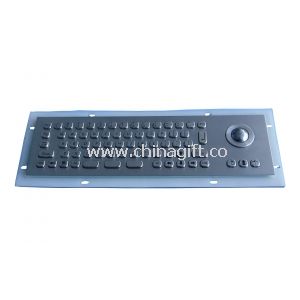

IP65 dynamic vandal proof stainless steel industrial kiosk keyboard with trackball

• MINI 68Keys Compact Format IP65 static Vandal Proof Stainless Steel industrial Keyboard
• IP68 dynamic rated washable 25mm stainless steel trackball module for fast and accurate cursor position
• Industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) for fast and accurate data input without any noise
• One complete silicone rubber along mounting aluminum plate for easy mounting & sealing tightly with cabinet
• 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling
• Rear panel mounting solution
• 2 optional trackball modules: IP68 static mecanical trackball module with 400DPI, IP68dynamic optical trackball module with 800 DPI

Imposing stainless steel design meets the highest demands with regard to design, functionality, longevity and high protection level. We design and manufacture complete electronic modules including controller in close consultation with our customers. Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof operation under hostile environments. Waterproof execution according to degree of protection IP65 from the front panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure. The keyboards have an excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. Internet friendly key layout, key-tops are laser etched in legends and characters for easy readability, long life to prevent lettering rub-off. Metal keys are protected against twisting and evering which can not be dislodged from front, or defaced removing key covers. Ease of customizing with multiple languages, to accommodate foreign or custom variants. Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables that plug directly into the host computer for normal keyboard operations.

Optional Trackball Modules: IP65 static rated mechanical trackball with 400 DPI, IP68 dynamic washable optical trackball module with 800 DPI.

This Keyboard is mainly targeted for use for: unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, airports, railway stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs), Internet public phones.

• Key: 70keys, super quality SUS304 brushed stainless steel
• Key top style: Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
• Key Size: 11.0mm x 10.0mm for normal keys, 10.0mm x 20.0mm for enter key
• Key travel: 2.0mm
• Tracker ball: 25.0mm (1.0') diameter, IP65 static 400DPI mechanical trackball module, IP68 dynamic washable 800DPI optical trackball module
• Switch life: more than 10 million of operations
• Actuation Force: 0.5N +/-0.1N for key 11.0mm x 10.0mm (pressure point), 1.0N +/-0.1N for key 10.0mm x 20.0mm (pressure point)
• Front Plate: Super quality brushed stainless steel1.5mm thickness super quality brushed stainless steel
• Back Plate: 3.0mm thickness brushed & oxidized aluminum
• Actuator/keys materials: stainless steel

G.W.: 1.20KGs, Dimensions: 293.0mm x 87.0mm (front panel), 317.0mm x 111.0mm (back panel)
