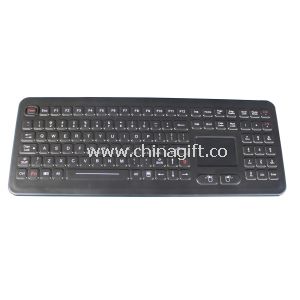

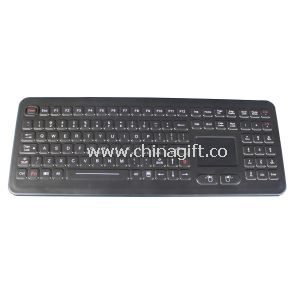

Dynamic Silicone Industrial PC Keyboard with sealed touchpad

Product Detailed Description

Special Features:

• 1. 108 keys ruggedized industrial silicone rubber Hygienic keyboard
• 2. IP65 rated with sealed touchpad
• 3. With numeric keypad and function keys

4. Industrial PCB with carbon-on-gold key switch technology with stroke 1.50mm for fast and accurate data input

• 5. With durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment
• 6. Adjustable industrial backlight optional

• 7. Military level optional
• 8. The keyboard lacks the crevices between the keys, which is protected against dust, dirt,for easy cleaning
• 9. Ease of customizing with multiple languages

10.Top panel mounted solutions with ruggedized robust polycarbonate frame with mounting studs.

Applications:
This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry.
A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
C: MILITARY: Army, Navy, Air force
D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
E: OTHER INDUSTRIES

Specification

• MECHANICAL DATA
• Key
• 108 keys
• Key top style

Protuberant rectangular keys with tactile feeling.

Key Size

12.0mm X 13.0mm for normal keys,
23.4mm x 13.0mm for enter key
68.0mm x 13.0mm for space bar key.

• Key travel
• 1.5mm
• Actuation Force

0.8 N+/-0.1N for normal key with 12.0mm x 13.0mm(pressure point), 1.6 N+/-0.1N for key 23.4mm x 13.0mm (pressure point)

• X/Y position sensing resolution
• 40 counts/mm
• X/Y position reporting
• Relative
• Switch life
• more than 10 million of operations
• Output(self-detectable depending on cable)
• PS2 or USB
• Tracking speed
• Maximum 1,016 m/sec
• Cable Length
• 2.5m

G.W.

1.50KGs

Dimensions:

399.0mm x 150.0mm (L x W )
