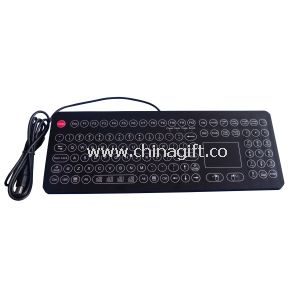

Ruggedized Touchpad Desk Top Industrial Membrane Keyboard with FN keys

Product Detailed Description

Designed for harsh industrial environments, this ruggedized touchpad membrane keyboard features a full 108-key layout with FN keys and IP68 protection.

• Ease of customizing with multiple languages accommodates foreign or custom variants.
• Stylish, rugged medical keyboard design suits applications requiring a rugged enclosure and low profile.
• 108 keys IP68 dynamic scratch proof industrial military medical membrane keyboard with full keyboard functionalities.
• Durable and anti-microbial keyboard surface.
• Mountable movable desk top version with robust polycarbonate case.
• PS/2, USB connection cables plug directly into computer like keyboard operations.
• 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology.
• Ruggedized and backed with 3.0mm aluminum plate.
• Movable stand alone desk top version with sealed aluminum metal housing with sand blasting & oxygenation surface treatment.

This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry.

• A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc.
• B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc.
• C: MILITARY: Army, Navy, Air force.
• D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses etc.
• E: OTHER INDUSTRIES.

Specifications include mechanical data: 108 keys with metal dome PCB and gold-on-gold metal dome key switch technology with short stroke keys.

• Actuation Force: 1.0N for key 13.0mm x 13.0mm (press point).
• Key travel: 0.45mm.
• Key switch Lifetime: 3 mil. operations.
• Protection Level: IP68.
• Mounting Type: Top panel mounting or Desk Top.
• Operating Temperature: -20 °C to +50 °C.
• Colors: 4 (Blue, White, Grey, Black).
• G.W.: 1.40KGs.
• Key Dimensions (print area): 13.0mm x 13.0mm.
• Dimensions: 396.0mm x 150.0mm x 27.0mm.

Touchpad cover is composite with capacitive method and 40 counts/mm resolution. It offers more than Lifetime 3 million strokes and Mutual Capacitance sensing.

• X/Y position sensing resolution: 40 counts/mm.
• X/Y position reporting: Relative.
• Output (self-detectable depending on cable): PS2 or USB.
• Tracking speed: Maximum 1,016 m/sec.
• Power supply voltage: 5 V DC ±0.25V.
• Current rating (active mode): 17 mA.
