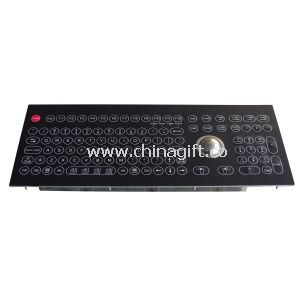

Black color Optical Trackball Industrial Membrane Keyboard with trackball

Product Detailed Description

Special Features:

• 1. Top panel mounted.
• 2. IP65 dynamic scratch proof industrial membrane keyboard.
• 3. With full keyboard functionalities.
• 4. Clean key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC.
• 5. Durable and anti-microbial keyboard surface.
• 6. IP68 dynamic rated washable 38.0mm optical trackball module with 800 DPI resolutions for fast and accurate cursor position.
• 7. 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology.
• 8. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
• 9. The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
• 10. 108keys

Applications:

This keyboard is suitable for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry. A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc. B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc. C: MILITARY: Army, Navy, Air force. D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses etc. E: OTHER INDUSTRIES

Specifications:

• MECHANICAL DATA
• Key
• 108
• Key switch Technology

metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys

• Actuation Force: 1.0N for key 13.0mm x 13.0mm (press point)
• Key travel 0.45mm
• Key switch Lifetime 3 mil. operations
• Protection Level IP65, NEMA 4x
• Mounting Type Top panel mounting or Desk Top
• Operating Temperature -20 °C to +50 °C
• Colors 4 (Blue, White, Grey, Black)
• G.W. 1.50KGs
• Key Dimensions (print area) 13.0mm x 13.0mm
• Dimensions 410.0mm x 160.0mm (front Panel)
