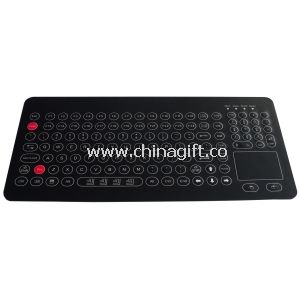

118 keys IP65 Dynamic Industrial Membrane Keyboard with 24 FN keys

Product Detailed Description

Special features:

1. Top panel mounted
2. Clean key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC
3. IP65 dynamic scratch proof industrial membrane keyboard with full keyboard functionalities.
4. CE,RoHS,FCC, IP65 test report etc
5. 118 keys with 24 function keys on the upper line
6. Ruggedized and backed with 3.0mm alumium plate with sand blasting & oxygenation treatment
7. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
8. PS/2, USB connection cables that plug directly into computer like keyboard operations.
9. Surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most
chemicals and liquids under the harshest environments,

Applications:
This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings.
Its numeric pad allows for easy data entry.
A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
C: MILITARY: Army, Navy, Air force
D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty
manufacturing environments, warehouses etc
E: OTHER INDUSTRIES

Specifications:

• MECHANICAL DATA
• Key
• 118
• Key switch Technology

metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys

• Actuation Force:
• 1.0N for key 11.0mm x 11.0mm (press point)
• Key travel
• 0.45mm
• Key switch Lifetime
• 3 mil. operations
• Protection Level
• IP65, NEMA 4x
• Mounting Type

Top panel mounting or Desk Top.

• Operating Temperature
• -20 °C to +50 °C
• Colors
• 4 (Blue, White, Grey, Black)

G.W.

1.60KGs

• Key Dimensions
• (print area)

11.0mm x 11.0mm

Dimensions

389.3mm x 179.2mm (top panel)
