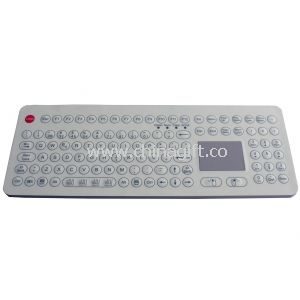

108keys With Touchpad Industrial Membrane Keyboard for medical application

Product Detailed Description

108keys With Touchpad Industrial Membrane Keyboard for medical application

• Special Features:
• 1. Stand alone movable desk top version with robust polycarbonate case.
• 2. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
• 3. The foil-covered aluminum front plate is mounted flush for easy cleaning.
• 4. With integrated numeric keypad and function keys on the upper line.
• 5. 108 keys IP68 dynamic scratch proof industrial military medical membrane keyboard with full keyboard functionalities.
• 6. With Clean key for easy cleaning via lock/disable the entire keyboard without needing to take keyboard from PC.
• 7. Durable and anti-microbial keyboard surface.
• 8. PS2 or USB both are available.

Applications:

This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings.

Its numeric pad allows for easy data entry.

A: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;

B: MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc

C: MILITARY: Army, Navy, Air force

D: INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses etc

E: OTHER INDUSTRIES

Specifications:

• MECHANICAL DATA
• Key
• 108
• Key switch Technology

metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys

• Actuation Force:
• 1.0N for key 13.0mm x 13.0mm (press point)
• Key travel
• 0.45mm
• Key switch Lifetime
• 3 mil. operations
• Protection Level
• IP68, NEMA 4x
• Mounting Type
• Desk Top or Top panel mounting
• Operating Temperature
• -20 °C to +50 °C
• Colors
• 4 (Blue, White, Grey, Black)

G.W.

1.60KGs

• Key Dimensions
• (print area)

13.0mm x 13.0mm

Dimensions

399.0mm x 150.0mm x 20.0mm (L x W x H)
