Product Detailed Description

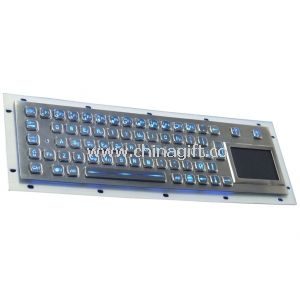

Designed for industrial environments, this ruggedized USB keyboard features a stainless steel front plate and an aluminum back panel with rear mounting holes.
- Features: RoHS, CE, FCC, IP65, ESD certified
- 68 keys compact format IP65 dynamic vandal proof stainless steel industrial kiosk keyboard
- Includes IP65 dynamic sealed & ruggedized tough touchpad with scroll function (optional) for fast and accurate cursor position
- One complete silicone rubber along mounting aluminum plate for easy mounting & sealing tightly with cabinet
- Industrial PCB with carbon-on-gold key switch technology with long stroke 2.0mm for fast and accurate input without any noise
- Adjustable industrial backlight included (Red or Blue color optional)
- Waterproof execution according to IP65 protection from top panel, rear aluminum plate with mounting holes easily & tightly mounting to enclosure or panel
- PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver
- Customizing with multiple languages accommodates foreign or custom variants
- Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers
- Complete electronic modules including controller in close consultation with our customers are available
Applications:
- Unsupervised or semi-supervised positions of varied access applications
- Internet terminals and information kiosks at universities
- Shopping malls, hotels, airports, railway stations and other public areas
- Ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
Specifications:
- Key: 68 keys, super quality brushed stainless steel
- Key top style: Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
- Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100mm for space bar
- Key travel: 2.0mm
- Switch life: more than 10 million of operations
- Actuation Force: 0.6N +/-0.1N for key 14.0mm x 14.0mm (pressure point), 1.2N +/-0.1N for key 14.0mm x 28.0mm (pressure point)
- Front Plate: 1.5mm thickness super quality brushed stainless steel
- Back Plate: 3.0mm thickness brushed & oxidized aluminum
- G.W.: 1.60KGs
- Dimensions: 343.0mm x 105.0mm (front panel), 367.0mm x 129.0mm (back panel)
