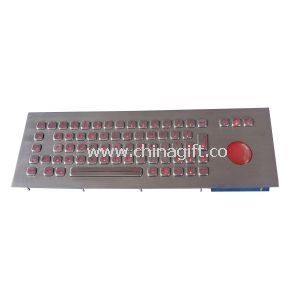

Marine panel mounting illuminated USB keyboard with chameleon trackball
| Model No. | CG19371 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 1792 views |
US$ 2~9 /Piece | Get Latest Price
Product Detailed Description
Marine panel mounting illuminated USB keyboard with chameleon trackball
- CE, RoHS, FCC certified, IP65 test report
- 69 keys IP65 static rated vandal proof stainless steel industrial kiosk keyboard with trackball
- IP65 static rated 38mm Transparent Mechanical Trackball Module with touch changeable chameleon backlight and 400 DPI resolutions
- PS/2, USB connection plug and play with PC via PC existing OS driver
- 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling
- stainless steel top plate with threaded bolts for top panel mounting solution
- industrial PCB with carbon-on-gold key switch technology with long stroke 2.0mm with extremely good tactile feeling for fast and accurate input without any noise
- internet friendly key layout, key-tops are laser etched in legends and characters for easy readability, long life to prevent lettering rub-off
- complete electronic modules including controller in close consultation with our customers are available
Applications:
- unsupervised or semi-supervised positions of varied access applications
- internet terminals and information kiosks at universities
- shopping malls, hotels, airports, railway stations and other public areas
- ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.
Specifications:
- Key: 69 keys, super quality SUS304 brushed stainless steel
- Key top style: Protuberant rectangular keys, with laser engraved and etched legends and raised braille on keys are available
- Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100mm for space bar
- Key travel: 2.0mm
- Tracker ball: 38.1mm (1.5') diameter, IP65 static 400DPI mechanical trackball module, IP68 dynamic washable 800DPI optical trackball module, IP68 dynamic washable 1200DPI laser trackball module
- Switch life: more than 10 million of operations
- Actuation Force: 0.6N +/-0.1N for key 14.0mm x 14.0mm (pressure point), 1.2N +/-0.1N for key 14.0mm x 28.0mm (pressure point)
- Front Plate: Super quality brushed stainless steel 1.5mm thickness
- Back Plate: 3.0mm thickness brushed & oxidized aluminum
- Actuator/keys materials: stainless steel
- G.W.: 1.80KGs
- Dimensions: 361.0mm x 125.0mm (front panel)
