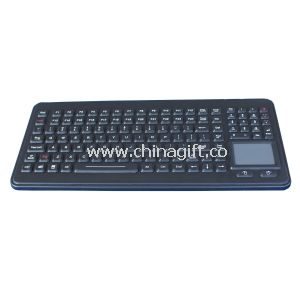

Illuminated USB keyboard with ruggedized touchpad
| Model No. | CG19374 |
|---|---|
| Sample Time | 7 days |
| OEM / ODM | Available |
| Port | Shenzhen or HK,China |
| Views | 488 views |
US$ 6~15 /Piece | Get Latest Price
Product Detailed Description
Illuminated USB keyboard with ruggedized touchpad
- 120 keys IP65 rated ruggedized industrial silicone rubber keyboard with full keyboard functionalities
- with sealed & ruggedized touchpad
- Integrated numeric keypad, 24 function keys (F1, F2...F11, F12...F23, F24)
- adjustable industrial backlight included
- with industrial PCB with carbon-on-gold key switch technology with stroke 1.50mm with tactile feeling for fast and accurate data input without any noise
- with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment
- Clean key for easy cleaning, top panel mounted solutions with ruggedized robust polycarbonate frame with mounting studs
- ease of customizing with multiple languages, to accommodate foreign or custom variants
- PS/2, USB connection cables that plug directly into computer like keyboard operations
- military level optional
- keyboard with NVIS-compliant red adjustable backlighting, while NVIS backlighting makes this keyboard ideal for aviation or vehicle applications where night vision goggles are necessary
- the keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use
- Applications: MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc; MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc; MILITARY: Army, Navy, Air force; INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses; OTHER INDUSTRIES
- MECHANICAL DATA
- Key: 120 keys
- Key top style: Protuberant rectangular keys with tactile feeling
- Key Size: 12.0mm X 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key
- Key travel: 1.5mm
- Actuation Force: 0.8 N+/-0.1N for normal key with 12.0mm x 13.0mm(pressure point), 1.6 N+/-0.1N for key 23.4mm x 13.0mm (pressure point)
- X/Y position sensing resolution: 40 counts/mm
- X/Y position reporting: Relative
- Switch life: more than 10 million of operations
- Output(self-detectable depending on cable): PS2 or USB
- Tracking speed: Maximum 1,016 m/sec
- Cable Length: 2.5m
- G.W.: 1.50KGs
- Dimensions: 379.0mm x 169.0mm (L x W)
