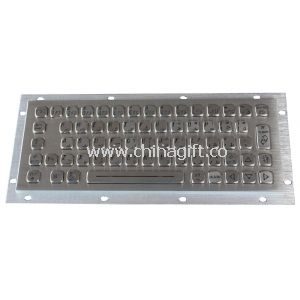

64 keys rear panel mounting illuminated USB keyboard with long stroke

Product Detailed Description

Special Features:

1. 64 keys compact format IP65 dynamic vandal proof stainless steel industrial kiosk keyboard

2. industrial metal PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise

3. rear panel mounting solution

4. with adjustable industrial backlight included (Red or Blue color optional)

5. CE, RoHS, FCC, IP65, ESD

• 6. PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver
• 7. ease of customizing with multiple languages, to accommodate foreign or custom variants

• 8. complete electronic modules including controller in close consultation with our customers are available
• 9. internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off
• Applications:

• This Keyboard is mainly targeted for use for:
• A: unsupervised or semi -supervised positions of varied access applications,
• B: internet terminals and information kiosks at universities,
• C: shopping malls, hotels, airports, railway stations and other public areas,
• D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

• Specifications:
• MECHANICAL DATA
• Actuator/keys

64 keys,
2.0mm thickness super quality SUS304 brushed stainless steel bulge keys.

Key top style

protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

Key Size

14.0mm x 14.0mm for normal keys,
14.0mmx28.0mm for Enter Key
14.0mm x 100.0mm for space bar.

• Key travel
• 2.0mm
• Switch life
• more than 10 million of operations
• Actuation Force

• 0.6 0N+/-0.1N for key 14.0mm x 14.0mm (pressure point)
• 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

• Mounting Rack
• Aluminum alloy
• Front Plate
• 1.5mm thickness super quality brushed stainless steel
• Back Plate
• 3.0mm thickness brushed & oxidized aluminum

G.W.

1.20KGs

Dimensions

272.0mm x 105.0mm (front panel), 296.0mm x 129.0mm (back panel)
