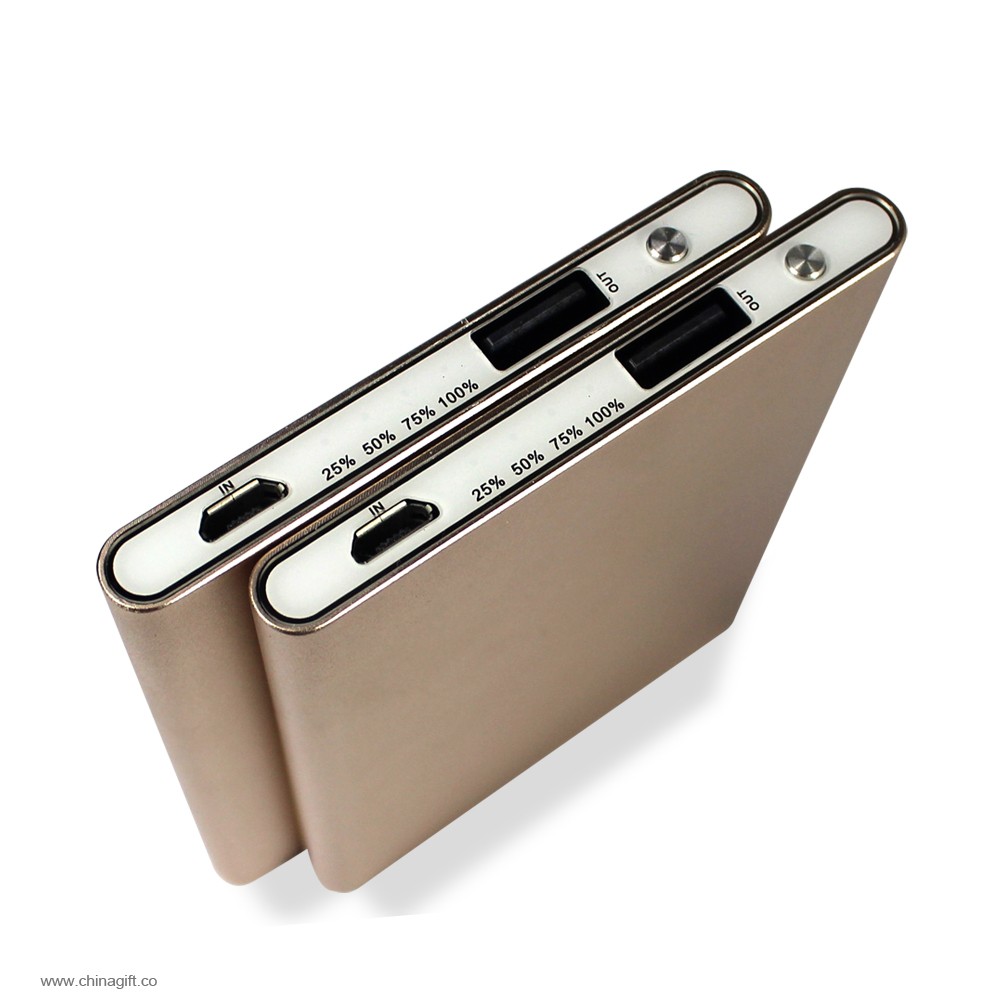

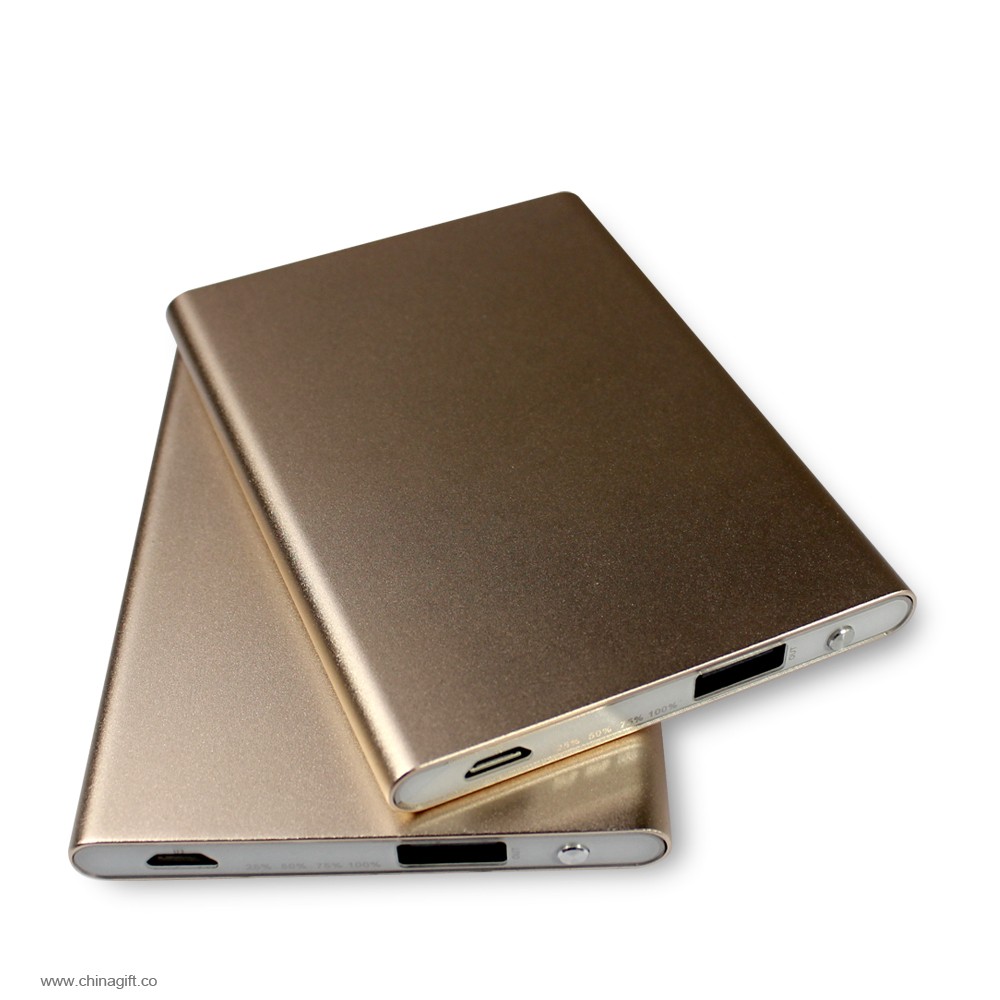

solar mobile phone charger power bank

Product Detailed Description

The solar mobile phone charger power bank can be charged by computer USB port or by mobile phone's charger.

• The rated capacity is 3000mAh.
• The operating display features blue LED indicators that flash in turn when it is charging and stay blue when fully charged.
• The protection system includes over-current, over-charge, over-discharge, short-circuit, and over-temperature.
• The charge mode is CV.
• Press the switch to charge the load, or press twice in one second to illuminate the LED torch.
• The housing type is plastic housing in optional color.
• The input interface is Micro USB (5Pin MicroUSB).
• The output interface is USB (4Pin USB-A Port).
• The input voltage is 5V±1V.
• The input current is 800-1000mA.
• The no load voltage is 3.7V±0.25V.
• The load voltage is 5V±0.25V.
• The output current is 1A (Max).
• The output power is 7.5W (Max).
• The load check involves pressing the switch to charge the load when the load has been connected.
• The quiescent current is <100uA.
• The biut-in battery capacity is Li-polymer battery 3000mAh.
• The average operating efficency is >89%.
• The charge time is 3-5 hours.
• The cycle time is >500 times.
• The over charge voltage is 3.70V±0.05V.
• The over current is 1.8A(typical).
• The under voltage is 2.8V.
• The short circuit is <150μs shut down output.
• The LED display is blue LED indicators that flash in turn when it is charging and keep blue when fully charged.
• The other functions require the output to be active by recharging or pressing the switch after short-circuit protecion, over load protection or over discharge protection.
• The product supports most mobile phones for IPHONE, for SAMSUNG, for HTC, for NOKIA, for HUAWEI, for ZTE etc., digital products like MP3, MP4, ipad etc., as well as many mobile equipment powered by 5V power supply for PSP, GPS etc.
